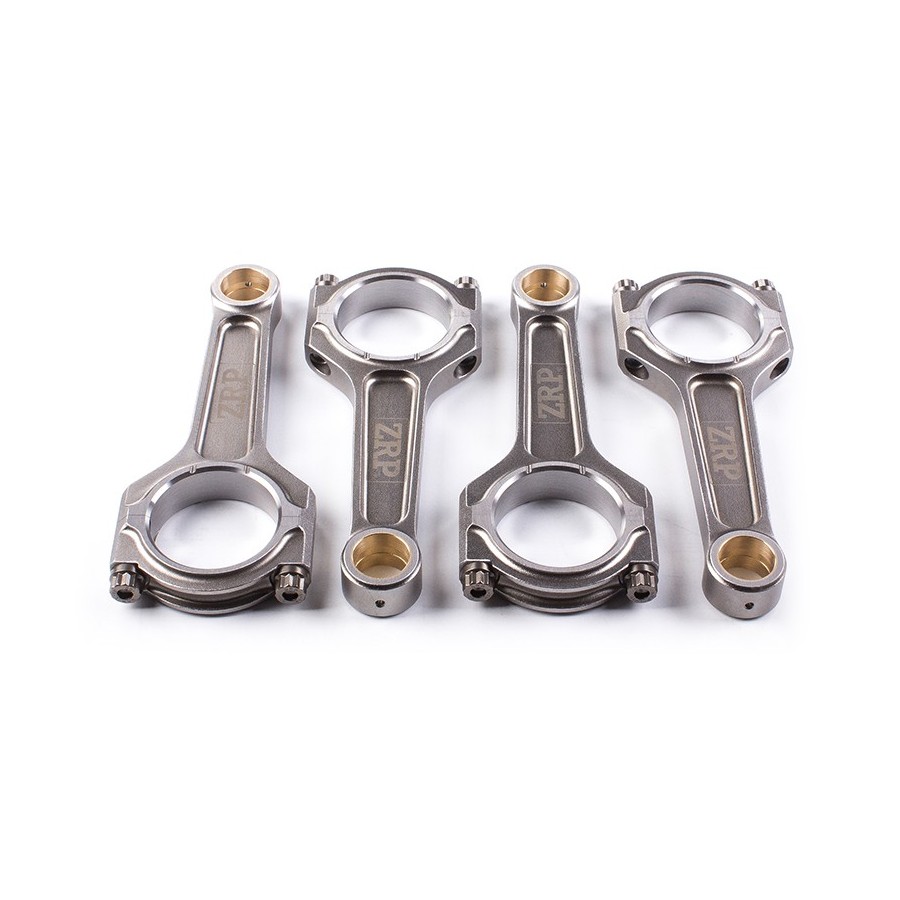

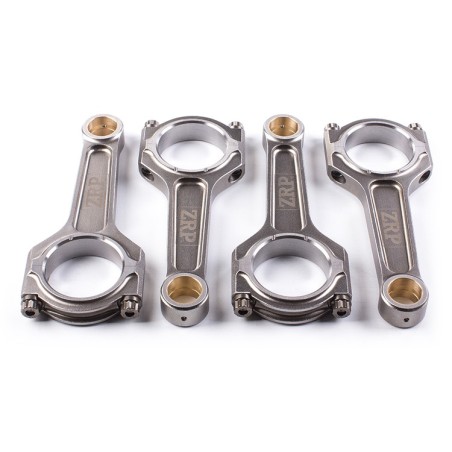

Bielle Honda K20 Heavy Duty I-Beam

La bulloneria ARP L19 comporta un aumento di prezzo da concordare. Inviare email al seguente indirizzo per ricevere preventivo: rmotoinfo@gmail.com

Misure: 138.90mm x 22.00mm

The I-Beam “Heavy Duty” series Connecting rods for Honda K20 aimed for the High Hp/Boost applications. Built from the finest raw materials 4340 high tensile steel with a specially optimized shape for high performance and extreme durability.The bushings are made from AMPCO 18 material, for excellent resistance to wear and fatigue and have radial groove acting as an oil reservoir. They are shot peened to relieve stress from the material and multi-stage heat treated to increase rigidity. The tight tolerances in the production process, ensure a perfect fitment while optimizing the oil clearances. Bend and twist is tightly controlled.

Each rod includes 3/8 ARP 2000 cap fasteners that are rated at 220,000psi, optional ARP L19 material 260.00psi available as an upgrade and the whole kit is supplied with ARP moly and full fitting instructions.

Additional machining processes

Dowel sleeves for perfect fit and accurate re-assembling

Lipped Cap Relief for improved big-end integrity at extreme application

Grooves in Thrust Face for weight reduction

Technical Features of ZRP Connecting Rods

I-Beam Shape for extra rigidity

Two-Piece forging for great strength

Shot Peening for improved fatigue life

Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard

Double ribbed caps for added support

Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.

CNC machining for superior tolerances, precise as much as 0.0002″

Center to center is maintained under .001″ tolerance

Finite Element Analysis (FEA) Computer generated stress analysis of con rods

Optimal balancing for weight matched sets of ± 1gram
